CSS animation made easy!

Stylie is a fun tool for easily creating CSS 3 animations. Quickly design your animation graphically, grab the generated CSS and go!

Watch this screencast for a quick tutorial.

The Stylie Workflow

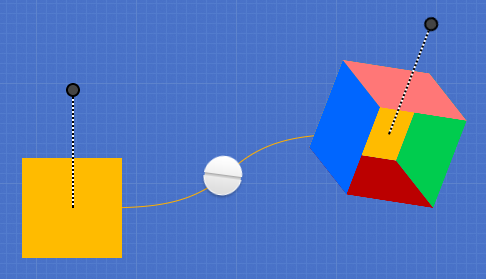

When you first open the app, you will see a little ball moving from left to right. To change the beginning and ending positions of the animation, just click and drag the crosshairs to your liking. When your cursor is not focused on a text input, you can hold the Shift key to make rotation Cubelets appear over the crosshairs. Click and drag the Cubelets to modify the the X and Y rotation axes, and drag the extended rotation arm to modify the Z axis rotation. Additionally, you can scroll your mousewheel while hovering over a Cubelet to modify the scale of the element.

Keyframe editing

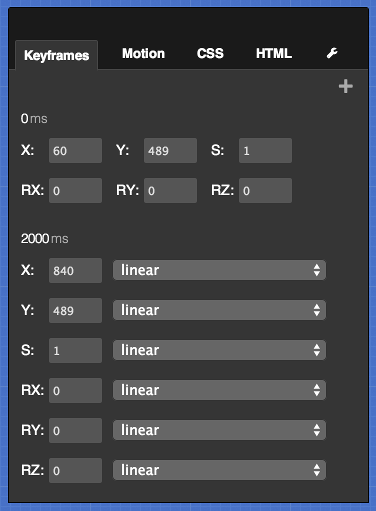

You can add, remove and edit keyframes. This is done in the "Keyframes" tab. When you first open Stylie, you are presented with the default keyframes. Keyframe 0 cannot be moved and has no easing properties associated with it, but all of the other keyframes do. To add a new keyframe, click the "Add a Keyframe" button in the upper right portion of the tab.

RX, RY and RZ refer to the three rotation axes, and S refers to the scale value. You can add as many keyframes as you'd like. You can also reorder keyframes by clicking their millisecond value and pressing the Enter key.

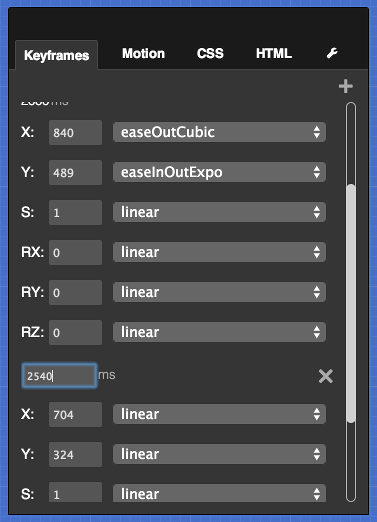

You can tweak individual keyframe properties by pressing the "up" and "down" arrow keys when focusing on a property's text input. You can change individual properties' easing curve by selecting it from the dropdown next to each text input. To remove a keyframe, click the "X" in the upper right corner of its form field.

Motion control

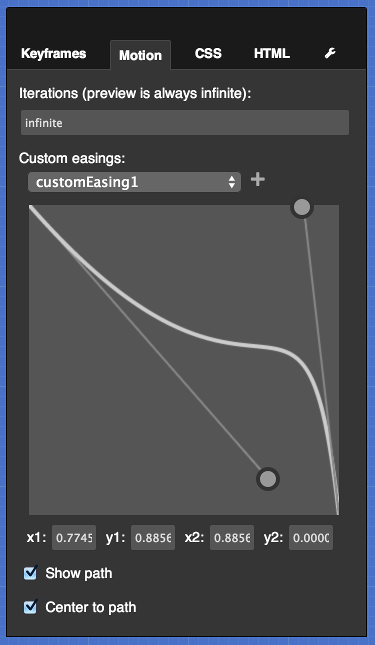

In addition to the standard easing curves, you can define your own custom curves in the "Motion" tab. To do this, select or create a "customEasing" from the dropdown and drag the circular handles. You can also type in the coordinates for the control points. Once you have defined your custom curve, you can select it from any property's easing dropdown.

Playback control

There is a scrubber in the bottom left of the screen. This is fully interactive; you can can play, pause and stop the animation. You can also click and drag the scrubber and zip to any part of the timeline.

Generating your CSS

Once you've tweaked the animation to your liking, it is time to generate the CSS to be used in your web page. Click on the "CSS" tab in the control panel to see the ready-to-use CSS. You can tweak the generated CSS for your specific needs, such as the name of the CSS class on the DOM element to be animated, and which browser vendors you want to support. Stylie will optimize simpler animations, but more complex animations will generate very verbose CSS, so be aware of that. You can control the size of the generated CSS for complex animations with the slider below the CSS text box.

Saving your animation

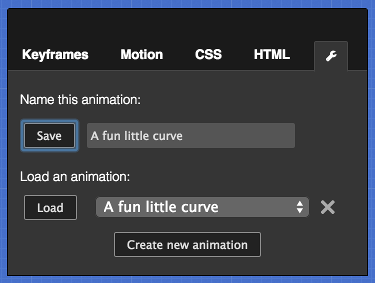

You can save your animation to HTML5 Local Storage. To do this, open the wrench menu and type in the name of your animation. You can also recall saved animations from this menu. Additionally, you can erase the current animation and start from scratch.

Key bindings

Stylie has a few keyboard-activated features:

(When no inputs are focused)
K	Add a new Keyframe
C	Toggle the Control Pane
T	Toggle the Timeline Scrubber
H	Toggle this Help screen
P	Toggle this crosshairs and path guide
Space bar	Play/Pause the animation
Shift (hold)	Show keyframe rotation Cubelets

This tool is open source

The code lives on Github. You are free to do what you please with the code - Stylie is distributed under an MIT license. If you would like to request a feature, please do so with the project's issue tracker.

How it's made

Stylie is built with some very useful open source libraries:

• Rekapi
• Shifty
• Keydrown
• jQuery
• • jQuery Dragon
  • jQuery Cubelet
• Backbone
• Lo-Dash
• RequireJS
• mustache.js

Font icons are courtesy of:

• Font Awesome

Author

Stylie is built and maintained by Jeremy Kahn. He's a nice guy and you can find him on Twitterand Github. Stylie's beautiful blue theme was designed by the talented Jon Victorino.
